High Output PVC Profile Extrusion Line 300MM Profile Size 250KG/H Capacity

Brand Name : LB

Model Number : LB-240

Certification : CE,ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : USD,EUR

Payment Terms : L/C,T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : STANDARD PACKAGE

EXTRUDER MODEL : CONICAL TWIN SCREW EXTRUDER

PROFILE'S SIZE : 300MM

MOTOR POWER : 37KW

RAW MATERIAL : PVC & ADDITIVES

PROFILE COLOR : DIFFERENT

CAPACITY : 250KG/H

Contact Now

High Output PVC Profile Extrusion Line

300mm Profile Size | 250kg/h Capacity

Complete PVC Window and Door Profile Extrusion Machine

LANGBO MACHINERY specializes in manufacturing high-quality PVC/WPC profile machinery, focusing on customer-oriented solutions without compromising quality standards.

Advanced Conical Twin Screw Extruder

Designed specifically for PVC profile applications, our extruder offers optimal solutions with material flexibility, high performance, and long durability.

High flexibility in raw material combinations
Gentle and homogeneous plastification
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen

Customizable Calibration Tables

We offer a comprehensive range of calibration tables with tailor-made solutions for every application need.

Motor-driven height and side movement
Motor-driven longitudinal movement
Manual tilting movement
All water-contact parts made of stainless steel
Low maintenance cost
Table length from 4.5 to 14 meters
Vacuum pumps available upon request

Energy Saving Vacuum System

Our energy-saving system provides up to 80% vacuum energy savings with advanced features.

Vacuum energy savings up to 80%
Vacuum pumps driven by individual frequency inverters
Low noise level operation
Closed circuit water conservation system

Crawler Track Haul-off Units

Our haul-off units provide flexible solutions with adjustable pad dimensions and track lengths.

Flexibility in pad dimensions
Two independent tracks with gearboxes
Continuous speed adjustment by inverter
Pad width range: 220 to 500 mm
Track length: 1400 to 2000 mm

Precision Cutting Systems

We offer multiple cutting solutions including saw, guillotine, and blade cutting systems for various profile requirements.

Saw Cutter Features

Different saw dimensions for special profiles
Low maintenance cost
Integrated dust absorber unit
Adjustable cutting speed
Cutting width up to 800 mm
Cutting height: 10 to 100 mm

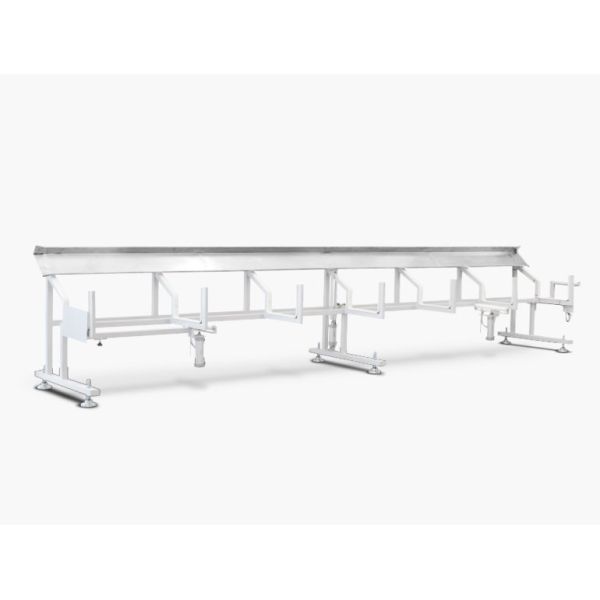

Tilting Table

Stainless steel table material
Pneumatic tilting system
Standard length: 6 meters (customizable)
Roller-type tables available for specific profiles

Complete Extrusion Line Components

Conical Twin Screw Extruder: Special screw and barrel design for perfect mixing and homogeneous output. Features motors and PLC automation with touch panel control.
Mould: Precision-designed for ideal viscosity with polished contact surfaces to minimize friction losses.
Calibration Table: Custom-designed for profile characteristics with stainless steel water-contact areas to prevent corrosion.
Crawler Track Haul-off: Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter: High-efficiency cutting with integrated dust collection system for clean operation.
Tip-off Unit: Pneumatic cylinder operation.

Production Specifications

MODEL	PROFILE SIZE (mm)	EXTRUDER MODEL	MOTOR POWER (kw)
LB-108	108	SJZ51/105	18.5 AC
LB-180	180	SJZ55/110	22 AC
LB-300	300	SJZ65/132	37 AC
LB-600	600	SJZ80/156	55 AC
LB-800	800	SJZ80/156	55 AC
LB-1240	1240	SJZ92/188	110 D
