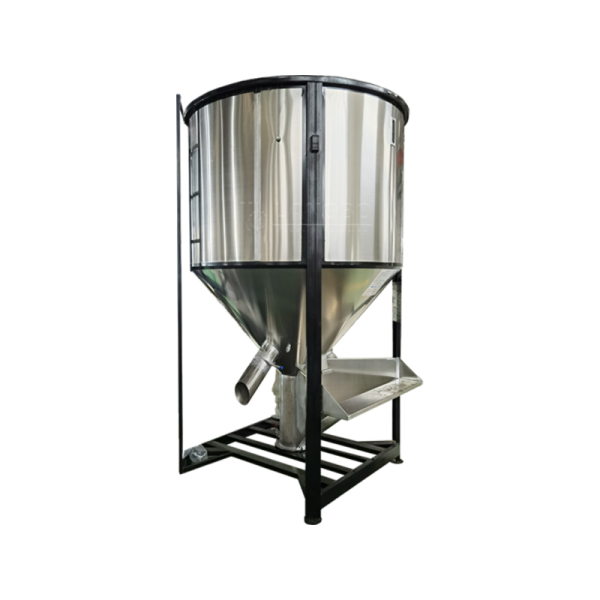

Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer

Brand Name : LANGBO

Model Number : LB-500

Certification : CE, ISO

Place of Origin : ZHANGJIAGANG, JIANGSU

MOQ : 1 SET

Price : USD, EUR

Payment Terms : ,L/C,T/T

Supply Ability : 1 SET

Delivery Time : 60 WORKING DAYS

Packaging Details : STANDARD PACKAGE

Contact Now

Processing Process
The material is first loaded into the vertical cylindrical drum, where the steel spiral blades continuously lift, fold, and mix it while hot air is circulated for uniform drying. The built-in temperature control system ensures consistent heating, while the variable-speed drive allows precise control of the mixing intensity. Moisture is efficiently removed through the exhaust system, and the process continues until the material reaches the desired dryness and homogeneity, after which it is discharged for the next production stage.

Specification
Model
300KG
500KG
1T
2T
Power(KW)
 3 3 4 5.5
Heating Power(KW)
 15 15 15 15
Capactit(KG/m³)
300/0.75
500/1
1000/2
2000/4
Speed(R/MIN)
 370 370 370 370
Weight(KG)
 280 300 370 500

Product Description
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer
Large-Capacity Mixing Barrel
Designed to handle high volumes of powder or granular materials, ensuring efficient processing and uniform drying.
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer

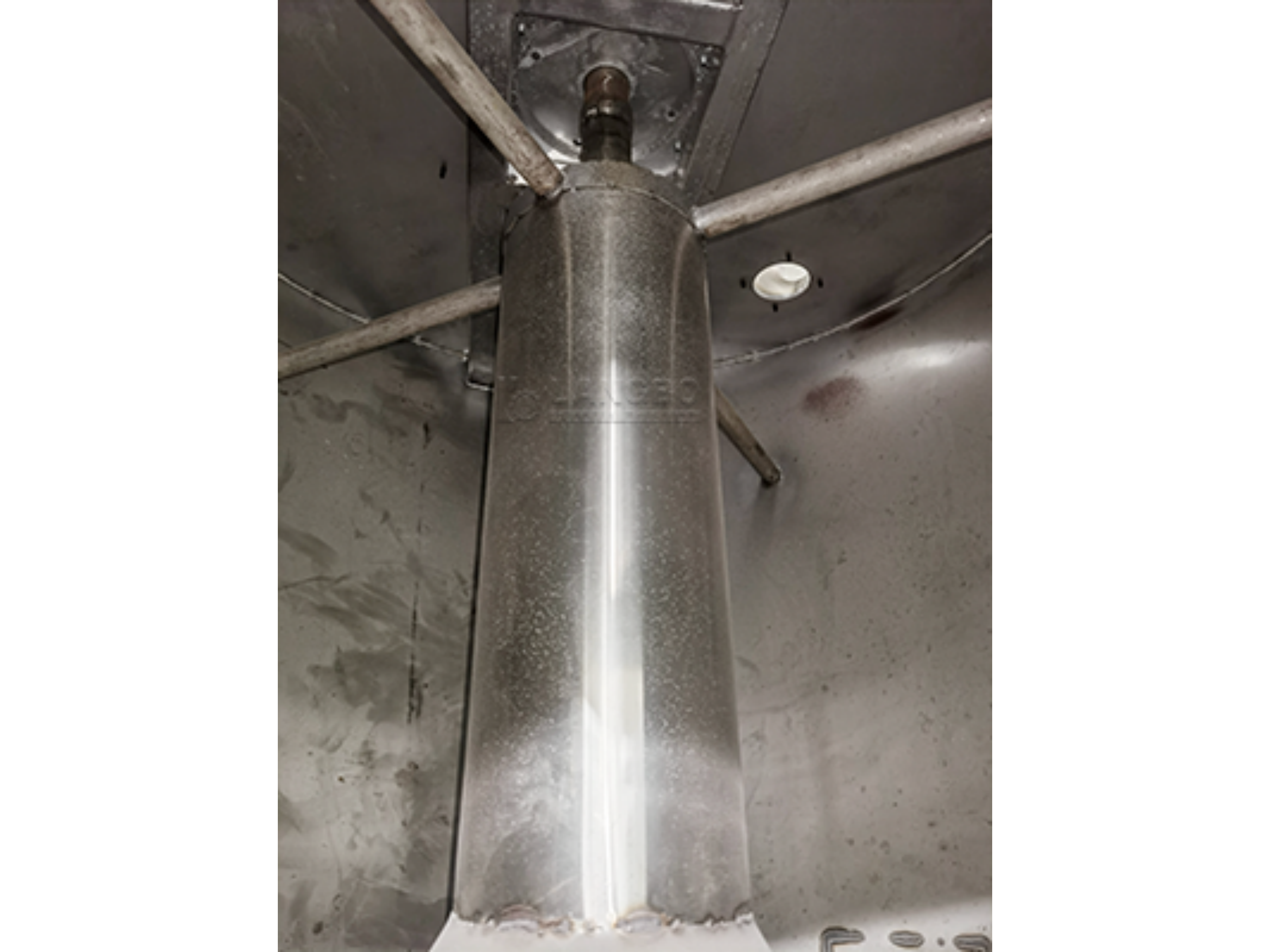

Helical Mixing Paddle
Spiral blades lift and fold materials continuously, providing thorough mixing and consistent particle distribution.
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer
Control Unit
Integrated system for precise temperature and speed control, allowing operators to optimize drying and mixing for various materials.
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer

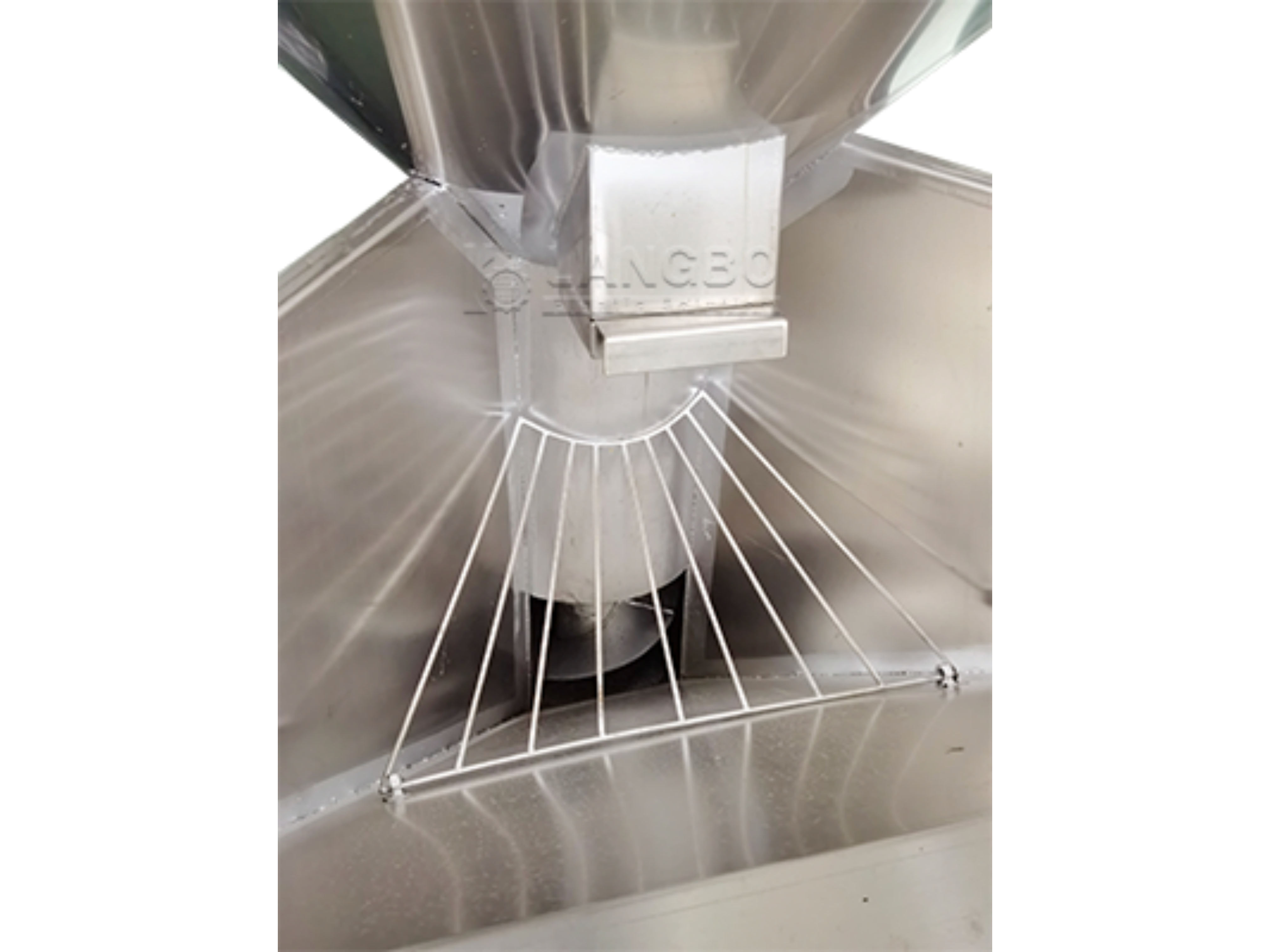

Feeder Hopper & Discharge Port
Easy material loading through the hopper and smooth discharge via the port, minimizing residue and simplifying cleaning.

Delivery Information
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
