75-450mm Sewage PE Pipe Extrusion Line High Production Capacity 75/38 Screw Diameter
LANGBO Extrusion operates in the manufacturing of plastic extrusion machines and systems for over many years. LANGBO Extrusion is the reliable solution partner from planning and process engineering for the optimum solution through set-up, start-up and operation of extrusion systems.
Applications include plastic profile, pipe and pelletizing extruders or complete extrusion lines. All machines and lines are tailor-made according to the customer's demands and needs.
We always aim to provide high performance extruders and energy efficient systems as well as reliable and fast spare parts delivery, service and support.
All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer's requests and provide solution from a single source.
Components and Features
We manufacture plastic pipe line have been designed for fully automatic operation. All of components we use in our machine and the lines have CE certificate. Our pipe lines designed for using factory place efficiently.
LANGBO MACHINERY is a company that makes manufacturing of PE/PP-R pipe machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.
Complete Extrusion Line Components
-
Single Screw Extruder: Applied for melting and stirring PE. LANGBO employs specific screw and barrel for material type that provides perfect mixing and homogeneous. Features high level technical solution with suitable screw geometry for plastic pipe extrusion.
-

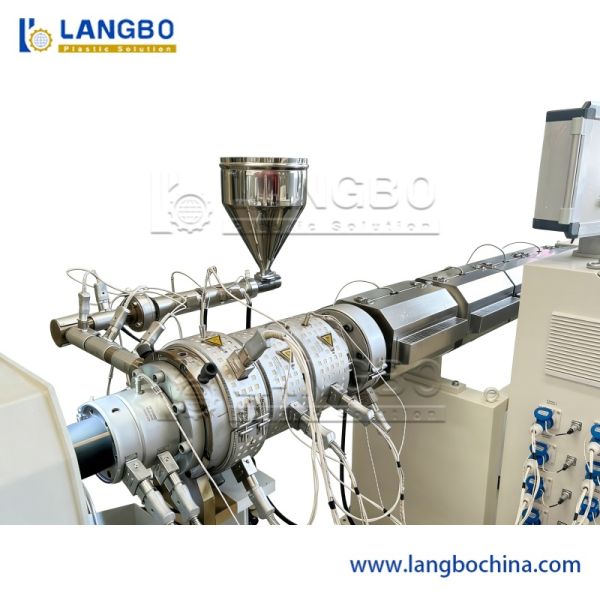

Die-Head: Designed to give ideal viscosity to melt material for pipe producing. All surfaces in contact with plastic are polished to minimize friction losses. Available in single layer, two layer and multi layer configurations.
-

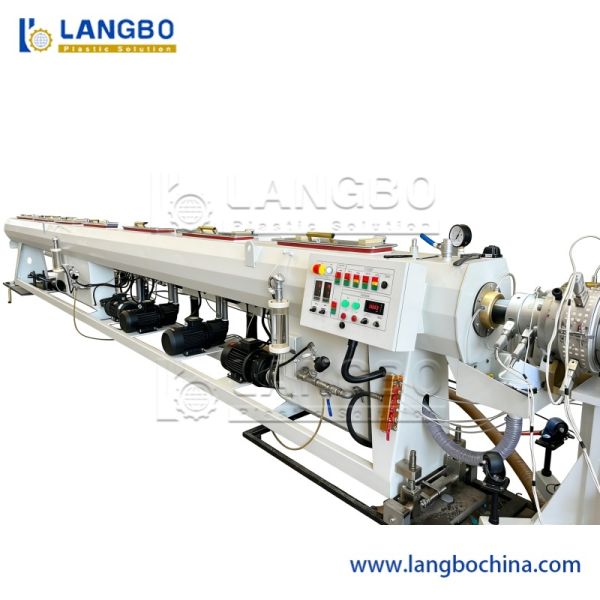

Vacuum Tank: Manufactured with stainless steel. Features nozzles designed for maximum cooling performance and adjustable vacuum pressure according to pipe requirements.
-
Haul-off: Provides excellent adhesion to the pipe and prevents slipping. Speed can be changed with electrical inverter and works synchronously with pipeline.
-

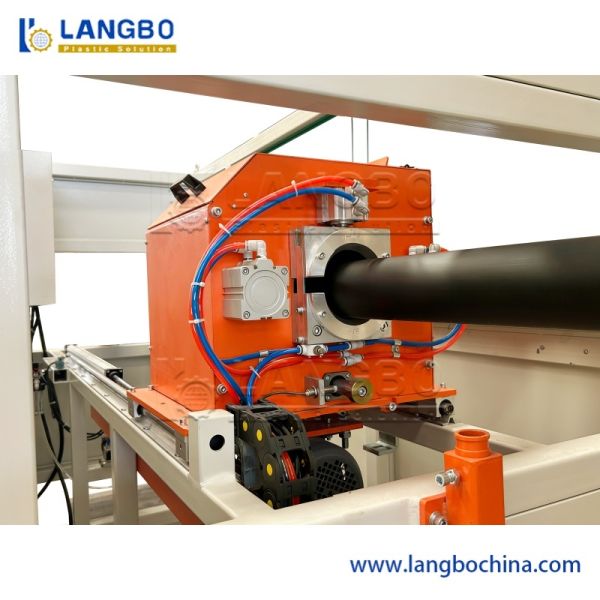

No Swarf/Dust Cutter: Planetary saw cuts pipe at designed length without burrs. Cutting speed synchronized with line speed by PLC for accurate length control.
-
Tipping Table: Operates on pneumatic cylinder system.
-
Pipe Coiler: Applied for winding PE pipes, corrugated pipes and dripping pipes. Uses torque motor for precise positioning and adjustable tension control.
Technical Specifications
| Model |
Pipe Diameter (mm) |
Extruder Model |
Motor Power |
| LB-63 |
20-63 |
SJ65/33 |
55AC |
| LB-110 |
20-110 |
SJ65/33 |
55AC |
| LB-160 |
75-160 |
SJ75/33 |
90AC |
| LB-250 |
90-250 |
SJ75/33 |
110DC |
| LB-315 |
110-315 |
SJ90/33 |
160DC |
| LB-450 |
160-450 |
SJ90/33 |
160DC |
| LB-630 |
315-630 |
SJ120/33 |
280DC |
| LB-800 |
500-800 |
SJ150/33 |
315DC |
| LB-1200 |
710-1200 |
SJ150/34 |
400DC |
Cutting Unit Options
Planetary Cutter: Cutting and chamfering rigid pipes, synchronization with extruder speed, low maintenance cost, adjustable cutting speed. Product Range: 50 to 800 mm
Saw Cutter: Cutting pipes up to 63 mm, low maintenance cost, adjustable cutting speed. Pipe range: 16 to 63 mm
Guillotine Cutter (GK 32): Special design for pipes, dust and chip-free cutting system, low maintenance cost. Pipe range: 16 to 32 mm
Product Images
